Product Big Image
  • Frys.com #6525433
  • Manufacturer: Trendnet
  • UPC #710931505061
  • Model #TPE-S44
    • 4 x 10/100 Mbps PoE ports.
    • 4 x 10/100 Mbps ports.
    • 30 W PoE power budget.
    • 1.6 Gbps switching capacity.
    • Sturdy metal switch.
    • Plug and Play installation.





    shipping_info
    In Stock
    Ships Same Business Day
    status_info
    FreeShipping
    store_pickup


    Detail Description
    Detailed Description
    (Manufacturer # TPE-S44 )

    New Page

    TRENDnet's 8-Port 10/100 Mbps PoE Switch, model TPE-S44, offers 4 x 10/100 Mbps PoE ports, 4 x 10/100 Mbps ports, a 1.6 Gbps switching capacity, and a PoE power budget of 30 Watts. Plug and Play this sturdy metal switch for reliable high speed PoE networking.


    PoE Camera Flexibility
    Recognizes non-PoE and PoE (15.4 W) cameras (or other PoE devices) and supplies the required amount of power automatically.     		Durable Install
    This compact switch has a small footprint and the rugged metal housing improves product durability.     		Fanless Design
    Fanless design reduces energy consumption and operating noise, thereby supporting workstation/workgroup installations.


    PoE
    Supplies up to 15 Watts of PoE power per PoE port with a 30 Watt power budget
    Ports
    4 x 10/100 Mbps PoE ports and 4 x 10/100 Mbps ports
    Switching Capacity
    1.6 Gbps switching capacity
    Energy Savings
    Embedded GREENnet technology reduces power consumption
    Housing
    Rugged metal enclosure

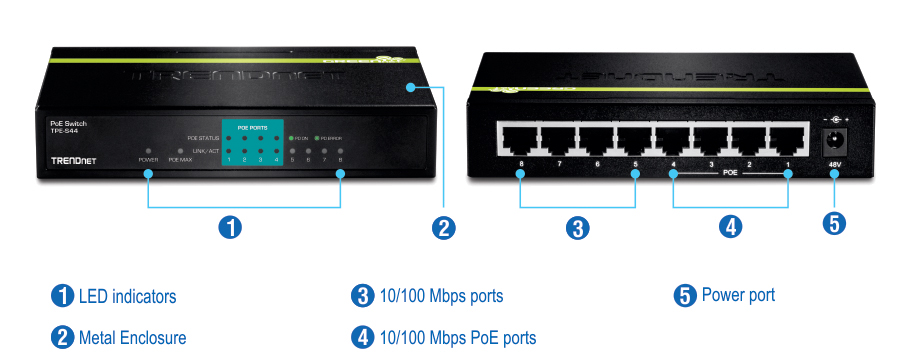

    LED Indicators
    LED indicators convey port s



    • Standards
    • IEEE 802.1p QoS
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3af (15.4 Watts/port)
    • IEEE 802.3az
    • IEEE 802.3x
    • Device Interface
    • 4 x 10/100 Mbps PoE ports (port 1~4)
    • 4 x 10/100 Mbps Fast Ethernet ports
    • LED indicators
    • Data Transfer Rate
    • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
    • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
    • Performance
    • Data RAM Buffer: 96 KB
    • Switch Fabric: 1.6 Gbps
    • MAC Address Table: 2 K entries
    • Forwarding rate: 1.19 Mpps (64-byte packet size)
    • Special Features
    • GREENnet energy saving technology
    • Power
    • Input: 110-240 V AC, 50/60 Hz, 0.75 A
    • Output: 48 V DC, 0.8 A
    • Consumption: 2.1 Watts (Max. without PD)
    • PoE
    • PoE budget: 30 Watts
    • Pin 3, 6 for power+ and pin 1, 2 for power- (mode A)
    • Operating Temperature
    • Operating Humidity
    • Max. 90% non-condensing
    • Dimensions
    • 150 x 96 x 28 mm (5.9 x 3.8 x 1.1 in.)
    • Weight
    • 370 g (12.9 oz.)
    • Certifications
    • CE
    • FCC
    • Warranty
    • 3 year limited

    Package Contents

    • TPE-S44
    • Quick Installation Guide
    • Power adapter (48 V DC, 0.8 A)



    Specifications
     Technical Specifications   [return to top]
     Specification Value
    Speed: 10/100
    Ports: 8
    Network Management: Smart
    Layers:
    PoE: Yes
    Mount Type: Desktop
    Fiber Capable: No
    V Lan Support: No
