• Frys.com #6644154
  • Manufacturer: J5 CREATE
  • UPC #847626000058
  • Model #JUA 250 V2
  • Enhance your computer's display capabilities using J5 Create JUA's HDMI display adapter. This display adapter allows you to maximize your computer's display capabilities by allowing additional display monitors to be attached to your computer. It supports up to four displays running on the same Windows computer. And with its "Plug and Play" operation, you can easily connect display sources within seconds.





    Share this:

    Share on Google+

    j5create JUA250 V2 USB 2.0 to HDMI External Display Adapter


    Detailed Description
    (Manufacturer # JUA 250 V2 )



    j5create's JUA250 USB 2.0 Display Adapter acts as an external video card for your MAC or Windows compatible PC or Laptop. It allows you to add an additional HDMI monitor/display through any available USB 2.0 port.  There is no need to open up the computer to add an expensive video card. With the (JUA250) you simply load the drivers, plug in the adapter to the USB port, then plug in the HDMI monitor cable into the adapter and you are ready.

    The
    j5create JUA250 supports three viewing modes and HDMI audio.  Primary and Extended  mode allow you to have individual applications open on each monitor vastly improving productivity and extend your desktop across multiple displays, which is great for spreadsheets. Mirroring mode is used to clone one screen onto another, which is ideal for presentations.  In addition you can “Plug & Play” between your computer and a 2nd monitor or projector, to create new visual environments in seconds.

    j5create has developed this compact design for the sophisticated user who cares about function as well as elegance.



    Features

    * Supports display resolution:1920 x 1200 @ 32bit
    * Plug-and-Play USB connectivity

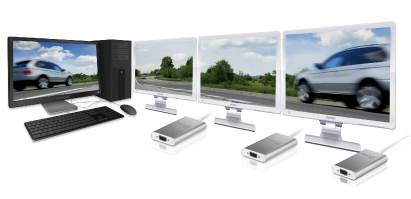

    * Allows for up to 4 adapters in Windows
    * Allows for up to 2 adapters in Macs
    * Supports Display Modes: Primary, Extended, Mirror
    * Display Rotation: 0°, 90°, 180°, 270°
    * Supports HDMI Audio
    * Aluminum enclosure that is non-toxic and recyclable
    * Easy driver install





    Specifications

    Interface

    Host Interface

    USB 2.0  Mini-B Female Connector

    Video & Audio Interface

    HDMI  Female Connector

    Power

    Power Mode

    Bus-powered or Self- Powered

    Power Consumption

    ≦500mA

    Physical Specification

    Housing Material

    Aluminum

    Dimensions

    Main body: 54(W)x 93(H)x14(D) mm
    Cable length: 130 mm

    Weight

    Approximately 78 g



    Environments

    * Windows 8.1 / 8 / 7/ Vista / XP

    * Mac OS X 10.6 / 10.7 / 10.8 / 10.9

    * Available USB 2.0 port

    * Temperature: Operating -50°F~131°F / Non- Operating: -77°F~167°F

    * Minimum System Requirements

    QTY

    1~2 Dongle

    34 Dongles

    CPU

    Intel/AMD  Dual core1.8 GHz or above

    Intel / AMD QUAD CORE 2.4GHz or above

    RAM

    2 GB or Higher

    4 GB or Higher

    USB

    An independent power supply is required when using the USB HUB to connect multiple dongles.





     This device is intended for ‘Office Applications’ and not for ‘Home Entertainment.’  Due to USB 2.0 bandwidth limitations video playback should only be performed on a single monitor.  Downsizing the video screen lower than 50% will help smooth out video streaming.


    note:

    Due to constant advancements in technology we, at j5create, make it a priority to give you the latest drivers available for our products. To ensure that your device is equipped with the most current driver, please visit our website at www.j5create.com and install the latest driver for this model.



    Resolutions and Color Depth

    Aspect Ratio

    Resolution

    Color Depth

    Wide Screen Display

    16:10

    1920 X 1200

    16,32 bits

    16:9

    1920 x 1080

    16,32 bits

    16:10

    1680 x 1050

    16,32 bits

    16:9

    1600 x 900

    16,32 bits

    16:10

    1440 x 900

    16,32 bits

    16:9

    1360 x 768

    16,32 bits

    16:10

    1280 x 800

    16,32 bits

    15:9

    1280 x 768

    16,32 bits

    16:9

    1280 x 720

    16,32 bits

    Standard Display

    4:3

    1600 X 1200

    16,32 bits

    4:3

    1400 x 1050

    16,32 bits

    5:4

    1280 x 1024

    16,32 bits

    4:3

    1280 x 960

    16,32 bits

    4:3

    1152 x 864

    16,32 bits

    4:3

    1024 x 768

    16,32 bits

    4:3

    800 x 600

    16,32 bits




    Package Contents

    * j5create USB HDMI Display Adapter(JUA250)

    * Quick Installation Guide

    * Driver CD with E-Manual









    Technical Specifications   [return to top]
     Specification Value
    Interface: USB
    Memory Size: N/A
    Chipset Manufacturer: N/A
    GPU: N/A
    Supports 4K:
