  • Frys.com #6684654
  • Manufacturer: Trendnet
  • UPC #710931203356
  • Model #TE100-S80G

  • 8-Port 10/100Mbps GREENnet Switch

    • GREENnet technology reduces power consumption by up to 40%*
    • 8 x 10/100Mbps Auto-Negotiation RJ-45ports
    • Build an energy efficient network in minutes
    • Plug and Play this sturdy metal switch

    The compact 8-Port 10/100Mbps GREENnet Switch (model TE100-S80g) provides improved bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 40%*.

    GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management required.

    Boost your office efficiency and reduce network congestion with a total switching capacity of 1.6Gbps with Full-Duplex Mode. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.






    shipping_info
    In Stock
    Ships Same Business Day
    status_info
    FreeShipping
    store_pickup


    Detail Description
    Detailed Description
    (Manufacturer # TE100-S80G )



    • 8 x 10/100Mbps Auto-Negotiation, Auto-MDIX Ethernet Ports

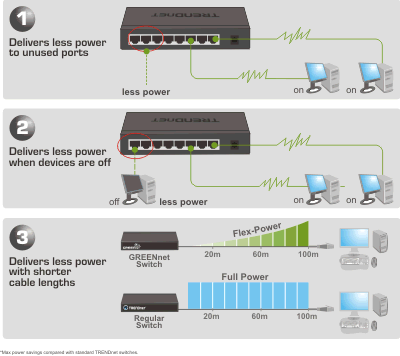

    • GREENnet technology reduces power consumption when: 1. Ethernet port is not in use 2. Connected device is turned off 3. Connected device is in power-saving mode 4. Based on Ethernet cable length
    • Compliant with IEEE 802.3/IEEE 802.3u standards
    • 1.6Gbps switching fabric
    • Store-and-Forward switching architecture with non-blocking wire-speed performance
    • IEEE 802.3x flow control support
    • Provides 1k MAC address entries
    • Compliant with Windows, Linux, and Mac Operating Systems
    • Sturdy metal housing
    • Diagnostic LEDs
    • Plug & Play installation
    • 3-year limited warranty

    New Page TE100-S80g

    Hardware:

    Standards: IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.3x Flow Control

    Network Media:

    • Ethernet: UTP/STP Cat. 3, 4, 5 up to 100m
    • Fast Ethernet: UTP/STP Cat. 5, 5e, 6 up to 100m

    Data Rate:

    • Ethernet: 10Mbps/20Mbps (half/full-duplex)
    • Fast Ethernet: 100Mbps/200Mbps (half/full-duplex)

    Protocol / Topology: CSMA/CD, Star

    Power Consumption: 2.5W (max)

    Switch Fabric: 1.6Gbps forwarding capacity

    Interface: 8 x 10/100Mbps Auto-MDIX RJ-45 Ports

    Data RAM Buffer: 768Kbits

    Filtering Table: 1K MAC entries

    Diagnostic LED: Power, Link/ACT, 100Mbps

    Power Adapter: 7.5V DC, 1A external power adapter

    Dimension: 136 x 25 x 70mm (5.35 x 0.98 x 2.76 in.)

    Weight: 265g (9.2oz)

    Temperature: Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F)

    Humidity: Operating: 10% ~ 90% (non-condensing) Storage: 5% ~ 90% (non-condensing)

    Certifications: FCC, CE







    Specifications
    Technical Specifications   [return to top]
     Specification Value
    Speed: 10/100
    Ports: 8
    Network Management: UnManaged
    Layers:
    PoE: No
    Mount Type: Desktop
    Fiber Capable: No
    V Lan Support: No
