• Frys.com #7072391
  • Manufacturer: Gigabyte
  • UPC #818313014603
  • Model #GV-R785OC-2GD

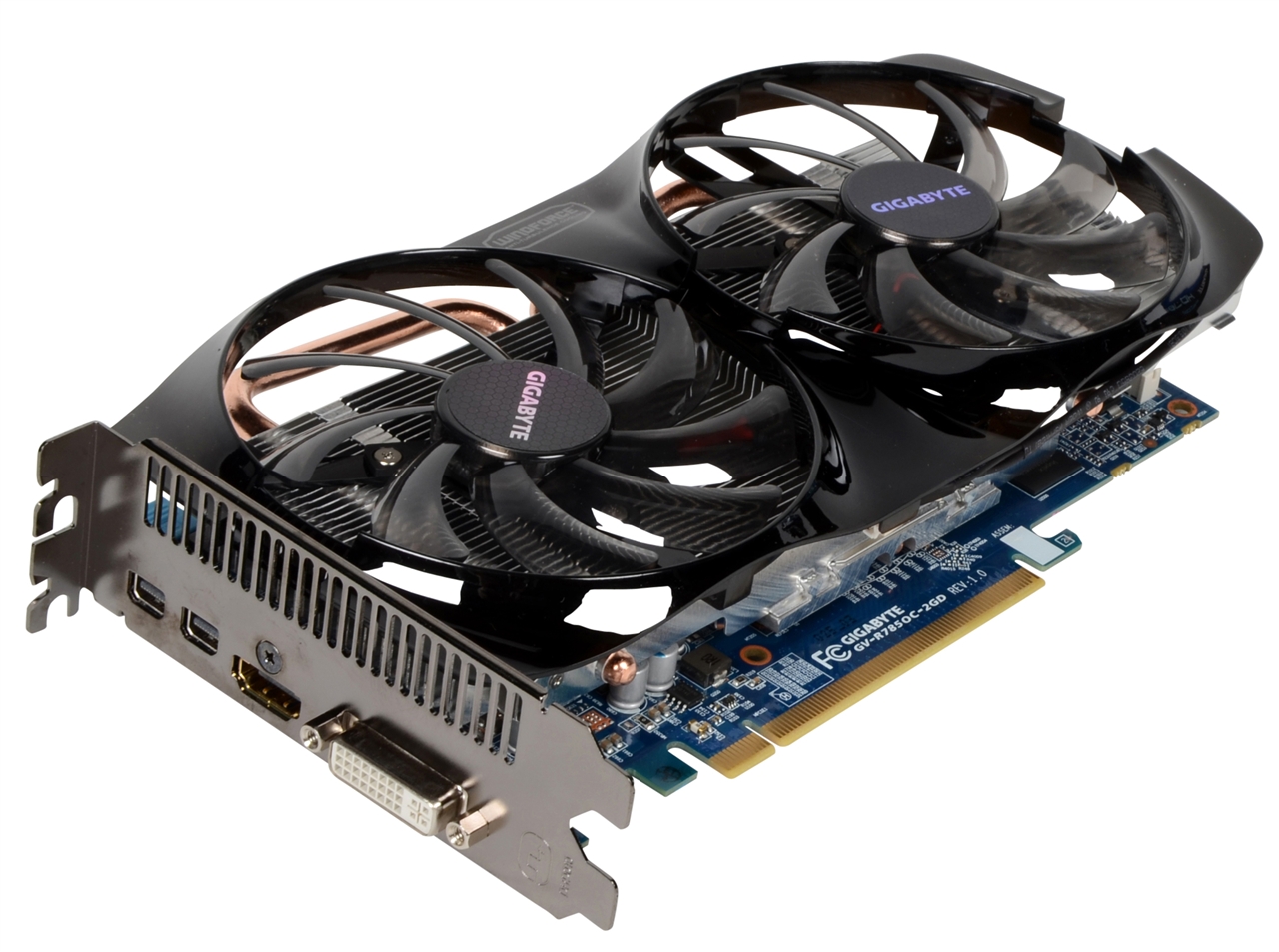

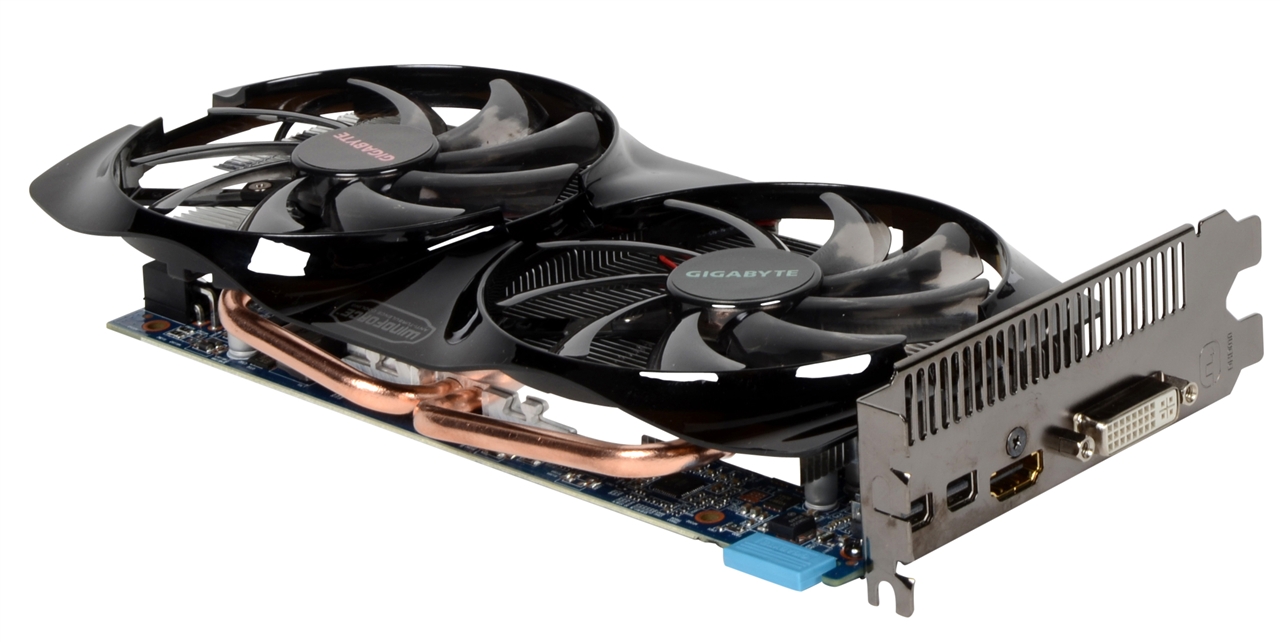

  • A great combination of performance and value, the GIGABYTE GV-R785OC-2GD graphics card offers a great solution for serious gamers requiring smooth gameplay and high quality HD video playback without a hit to the wallet. It's based on the latest 28nm GCN architecture and built around 1024 Stream Processors with 2GB/256-bit GDDR5 memory. A host of AMD technology such as AMD Eyefinity, AMD PowerTune, AMD ZeroCore Power, Crossfire and UVD (Unified Video Decoder) offers more than one way to boost your experience. Performance is only a part of the story. Ultra Durable 2 design adopts the first class components, including Ferrite Core Chokes, Low RDS (on) MOSFET and Lower ESR Solid Capacitors for unmatched stability and durability during demanding condition. WINDFORCE 2x cooling solution adopts 2x inclined fans which efficiently dispel heat while minimizing turbulence between fans, and 2 copper heatpipe to quickly transfer heat from hot area.





    Share this:

    Share on Google+

    Detailed Description
    (Manufacturer # GV-R785OC-2GD )

    Specifications

    Chipset

    GPU Manufacturer:

    AMD

    Overclocked:

    No

    Core Clock Speed:

    975MHz



    Memory

    Video Memory:

    2560MB

    Memory Type:

    GDDR5

    Memory Clock Speed:

    1200MHz (4800MHz Effective)

    Memory Bus:

    256-bit

    Memory Bandwidth:

    153.6GB/sec



    General

    OpenGL Support:

    OpenGL 4.2

    DirectX Support:

    DirectX 11

    HDCP Support:

    HDCP Capable

    Cooling:

    Fan

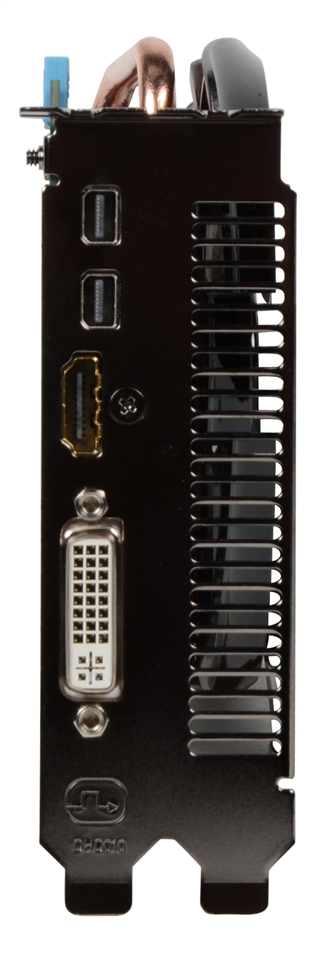

    Connectors

    Dual Link DVI Support:

    Yes

    DisplayPort Connectors:

    (2) mini-DisplayPort



    System Requirements

    Supported Windows Operating Systems:

    Microsoft Windows XP, Vista, 7

    Interface:

    PCIe 3.0 x16



    Physical Specifications

    Height:

    1.6"

    Length:

    9.5"

    Width:

    5.3"



    Package Contents

    What's in the Box:

    Graphics Card



    • Ultra Durable 2 Using high quality components on graphics cards is the key factor for having a long lasting, stable and reliable product. GIGABYTE is again setting a new standard by using Ferrite Core Chokes, Low RDS (on) MOSFET and Lower ESR Solid Capacitors, providing the stability and reliability from their high-end graphics solution. In addition, GIGABYTE Ultra Durable 2 Edition graphics cards now feature a sophisticated layout topology. This state-of-the-art power design from GIGABYTE delivers the ideal integration of thermal, electric characteristics, digital signals, power circuitry and optimum placement of components for enhanced graphics performance.

    • WINDFORCETM 2X: Anti-turbulence Cooling The special inclined dual fan design effectively minimizes the flow of turbulence between two fans and enhances heat dissipation of hot area right underneath each fan. By unique design, WINDFORCETM 2X even enlarges air channel on the graphics card vents and creates a more effective air flow system in chassis. This special design helps heat dissipate quickly from GPU. In addition, WINDFORCETM 2X is equipped with 2 copper heat-pipes which strengthen the speed of heat dissipation.

    • Gold plated HDMI Gold plated, durable large contact area connectors have been used for optimum signal transfer between connections.

    • Next Generation AMD Eyefinity Technology & AMD HD3D AMD Eyefinity 2.0 features all-new support for stereo 3D, universal bezel compensation, brand new display configurations and an expanded and more immersive field of view. With full support for 3GHz HDMI and DisplayPort 1.2 HBR2, the AMD Radeon HD graphics card is set to drive next generation displays at up to 4K resolution. It’s also backed by AMD’s open 3D initiative for stereo 3D gaming and Blu-ray 3D movies.

    • Refined AMD PowerTune Technology & AMD ZeroCore Power Technology Designed with the most advanced power management features, the AMD Radeon HD graphics card is equipped with the intelligence to convert unused power headroom into extra performance by dynamically controlling clock speeds, allowing gamers advanced performance inside of the power envelope they specify. AMD ZeroCore Power technology enables lower idle power than any other currently available graphics card. With support for AMD CrossFire technology, AMD ZeroCore Power eliminates wasted power, as well as additional heat and noise from extra cards when you are not using them.

    • AMD App Acceleration AMD App Acceleration lets you speed up applications and enjoy brilliant video. Enjoy improved general purpose computing performance and new features including Video Codec Engine (VCE) in many top media, entertainment and everyday productivity applications powered by the unprecedented 28nm GCN Architecture. AMD Radeon HD 7xxx fully supports DirectCompute 11 and OpenCL 1.2, enabling broad application support today and tomorrow.







    Technical Specifications   [return to top]
     Specification Value
    Interface: PCI - Express 16x
    Memory Size: 2 GB
    Chipset Manufacturer: AMD
    GPU: Radeon HD 7000 Series
    Supports 4K:
